Sıcaklık Kalibrasyon Banyosu

Sıcaklık Kalibrasyon Banyosu

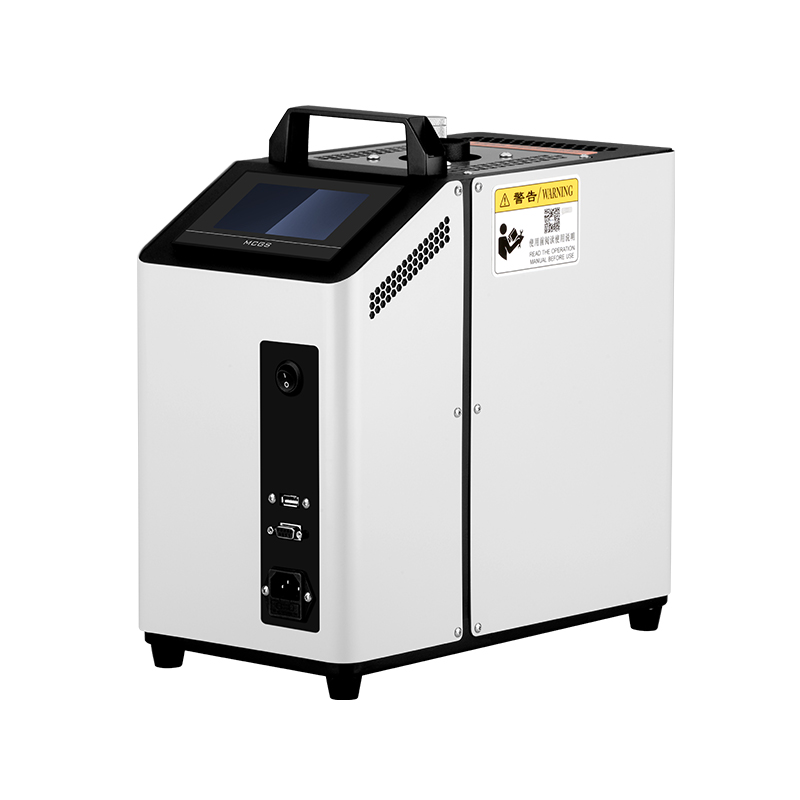

DEMEI DÜŞÜK, ULTRA DÜŞÜK, ORTA VE YÜKSEK sıcaklık kuru blok sıcaklık kalibratörleri modellere bağlı olarak -80℃ ila +300℃ aralığında sıcaklık kalibrasyonlarının yapılmasına imkan veren kuru blok tip sıcaklık kalibratörleridir.

DEMEI DMTHERMO DÜŞÜK SICAKLIK KURU BLOK SICAKLIK KALİBRATÖRLERİ

DY-GTL-D Ultra-low Temperature Dry Block Temperature Calibrator(-100℃~+40℃)

Model	DY-GTL-D
Temperature range	-100℃~+40℃
Display resolution	0.1℃/0.01℃ (customizable)
Accuracy	±0.5℃
Control Mode	Touch Screen
Check hole depth	145mm



DY-GTL150XA Dry Block Temperature Calibrator(-35℃~+150℃)



Model	DY-GTL150XA
Temperature Range(Indoor Temperature≤22℃）	-35℃~150℃
Display Resolution	0.1℃/ 0.01℃
Control Mode	Touch Screen
Stability	±0.1℃
Accuracy	±0.25℃
Depth of Checking Hole	155mm



DY-GTL150X Dry Block Temperature Calibrator(-20℃~150℃)

Model	DY-GTL150X
Temperature Range(Indoor Temperature≤22℃）	-20℃~150℃
Display Resolution	0.1℃/ 0.01℃
Control Mode	Touch Screen
Stability	±0.1℃
Accuracy	±0.3℃
Depth of Checking Hole	155mm



DY-GTL-D Ultra-low Dry Block Temperature Calibrator(-60℃~40℃)



Model	DY-GTL-D
Temperature Range	-60℃~+40℃
Display Resolution	0.1℃/0.01℃ (customizable)
Accuracy	±0.5℃
Control Mode	Touch Screen
Check Hole Depth	145mm
Default Display	Chinese display full color LCD ℃ or ℉
Diameter of Insertion Block	30mm



DY-GTL-D Ultra-low Dry Block Temperature Calibrator(-80℃~40℃)

Model	DY-GTL-D
Temperature Range	-80℃~+40℃
Display Resolution	0.1℃/0.01℃ (customizable)
Accuracy	±0.5℃
Control Mode	Touch Screen
Check Hole Depth	145mm
Default Display	Chinese display full color LCD ℃ or ℉
Diameter of Insertion Block	30mm
Calibration Hole Diameter	Standard:4mm, 6mm, 8mm, 10mm (customizable)
Dimensions (Length *Width* Height)	320mm*195mm*530mm
Weight	12 kg

DEMEI ORTA SICAKLIK KURU BLOK TİP SICAKLIK KALİBRATÖRLERİ

DY-GTL200X Dry Block Temperature Calibrator(50℃~200℃)

Model	DY-GTL200X
Temperature Range	50℃~200℃
Display Resolution	0.1℃/0.01℃
Accuracy	±0.3℃
Stability	±0.1℃
Radial uniformity	±0.2℃
Control Mode	Touch Screen
Depth of Checking Hole	155mm(Customizable)
Default Display	English Display full color LCD   ℃ or ℉
Diameter of Heat Block	34mm
Diameter of Checking Hole	4mm、6mm、8mm、10mm、12mm(Customizable)
Number of Checking Hole	4(Customizable)
Size(Height* Width* Length)	280mm ×160mm ×320mm
Weight	8.0KG



DY-GTL300X Dry Block Temperature Calibrator(50℃~300℃)

Model	DY-GTL300X
Temperature Range	50℃~300℃
Display Resolution	0.1℃/0.01℃
Accuracy	±0.35℃
Stability	±0.1℃
Radial uniformity	±0.2℃
Control Mode	Touch Screen
Depth of Checking Hole	155mm(Customizable)
Default Display	English Display full color LCD   ℃ or ℉
Diameter of Heat Block	34mm
Diameter of Checking Hole	4mm、6mm、8mm、10mm、12mm(Customizable)
Number of Checking Hole	5(Customizable)
Size(Height* Width* Length)	280mm ×160mm ×320mm
Weight	8.0KG



DY-GTL450X Dry Block Temperature Calibrator(50℃~450℃)

Model	DY-GTL450X
Temperature Range	50℃~450℃
Display Resolution	0.1℃
Accuracy	±0.5℃
Stability	±0.1℃
Radial uniformity	±0.2℃
Control Mode	Touch Screen
Depth of Checking Hole	155mm(Customizable)
Default Display	English Display full color LCD   ℃ or ℉
Diameter of Heat Block	34mm
Diameter of Checking Hole	4mm、6mm、8mm、10mm、12mm(Customizable)
Number of Checking Hole	4(Customizable)
Size(Height* Width* Length)	280mm ×160mm ×320mm
Weight	8.0KG



DY-GTL650X Dry Block Temperature Calibrator(50℃-650℃)

Model	DY-GTL650X
Temperature Range	50℃~650℃
Display Resolution	0.1℃
Accuracy	±0.5℃
Stability	±0.1℃
Radial uniformity	±0.2℃
Control Mode	Touch Screen
Depth of Checking Hole	155mm(Customizable)
Default Display	English Display full color LCD   ℃ or ℉
Diameter of Heat Block	34mm
Diameter of Checking Hole	4mm、6mm、8mm、10mm、12mm(Customizable)
Number of Checking Hole	4(Customizable)
Size(Height* Width* Length)	280mm ×160mm ×320mm
Weight	8.0KG

YÜKSEK SICAKLIK KURU BLOK TİP SICAKLIK KALİBRATÖRLERİ

DY-GTL800X Dry Block Temperature Calibrator(300℃-800℃)



Model	DY-GTL800X
Temperature Range	300℃~800℃
Display Resolution	0.1℃
Accuracy	±2.0℃
Stability	±0.5℃
Radial Uniformity	±1.0℃
Control Mode	Touch Screen
Depth of Checking Hole	155mm(Customizable)
Default Display	English Display,Full Color LCD   ℃ or ℉
Diameter of Insert Block	30mm
Diameter of Checking Hole	6.5mm、6.5mm、8mm、10mm(Customizable)
Number of Checking Hole	4(Customizable)
Size(Height* Width* Length)	300mm*190mm*360mm
Weight	8.0KG



DY-GTL1000X Dry Block Temperature Calibrator(300℃~1000℃)

Model	DY-GTL800X
Temperature Range	300℃~1000℃
Display Resolution	0.1℃
Accuracy	±2.0℃
Stability	±0.5℃
Radial Uniformity	±1.0℃
Control Mode	Touch Screen
Depth of Checking Hole	155mm(Customizable)
Default Display	English Display,Full Color LCD   ℃ or ℉
Diameter of Insert Block	30mm
Diameter of Checking Hole	6.5mm,6.5mm,8mm,10mm(Customizable)
Number of Checking Hole	4(Customizable)
Size(Height* Width* Length)	300mm*190mm*360mm
Weight	8.0KG



DY-GTL1200X Dry Block Temperature Calibrator(300℃-1200℃)

Model	DY-GTL1200X
Temperature Range	300℃~1200℃
Display Resolution	0.1℃
Accuracy	±2.0℃
Stability	±0.5℃
Radial Uniformity	±1.0℃
Control Mode	Touch Screen
Depth of Checking Hole	155mm(Customizable)
Default Display	English Display,Full Color LCD   ℃ or ℉
Diameter of Insert Block	30mm
Diameter of Checking Hole	6.5mm,6.5mm,8mm,10mm(Customizable)
Number of Checking Hole	4(Customizable)
Size(Height* Width* Length)	300mm*190mm*360mm
Weight	8.0KG

Diğer endüstriyel kalibratörlerimiz için bu linki -> tıklayınız.

Kuru blok tip Sıcaklık Kalibrasyon Banyosu seçimi için üstteki tabloyu kullanabilirsiniz.
